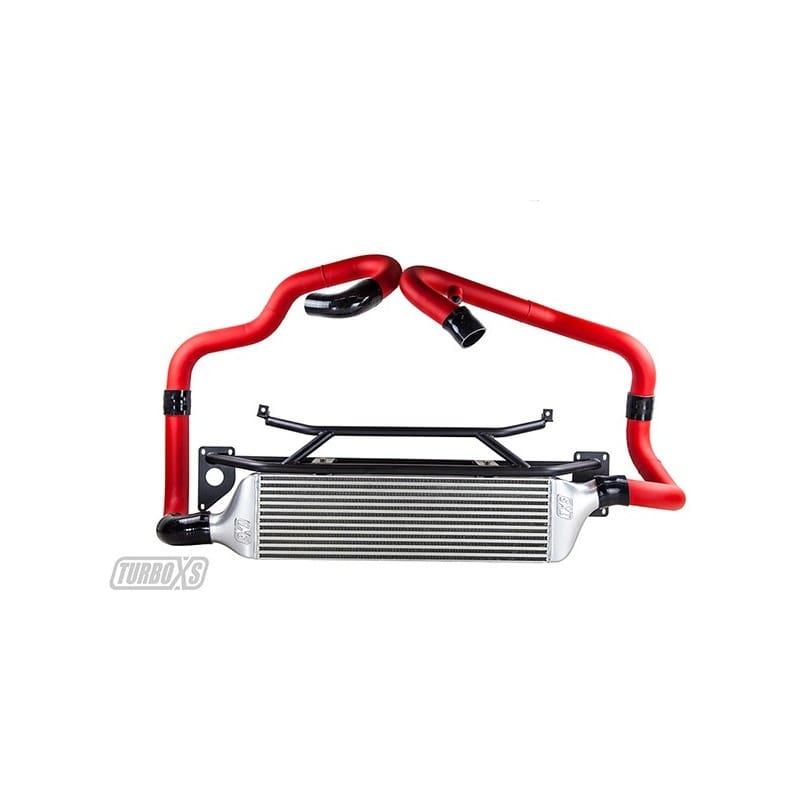

TurboXS 2015 Subaru STi Front Mount Intercooler Kit with Wrinkle Red Pipes.
One of the biggest keys to making consistent power in a 2015 STi is managing the intake manifold temperature. This is an issue when the STi is bone stock and becomes an even bigger issue when you start to modify it. The stock top mount intercooler simply isn’t up to the task. After just a few minutes of hard driving, the small, overworked TMIC quickly becomes heat soaked. Intake manifold temperatures rise quickly and power output drops off even more quickly. The power drop is due to the hotter, less dense air coming out of the intercooler. You could replace the stock TMIC with an well-designed aftermarket TMIC. While they are certainly much better than the stock TMIC, they can only delay the inevitable intake manifold temperature increase that comes from having a small intercooler core sitting inside a hot engine bay.
Enter the TurboXS Front Mount Intercooler for the 2015 STi. The bar and plate core is 28 inches wide, 8 inches tall, and 3.75 inches thick and absolutely dwarfs the factory TMIC. With our FMIC installed on a 2015 STi, intake manifold temperatures stay constant even after repeated pulls to redline. With the TurboXS Front Mount Intercooler, inconsistent power output due to sky-high intake manifold temperatures is a thing of the past!
In addition to performing the design function of cooling the intake charge flawlessly, our FMIC include some cool features such as a powdercoated tubular steel mounting beam with integrated threaded tow hook mount. This unique feature allows you to use any License Plate Relocation kit that uses the tow hook mount such as our TOWTAG-W15 (sold separately). This keeps you legal while also keeping your front license plate from blocking airflow to your FMIC. No other FMIC on the market that we know of has this unique, one-of-a-kind feature! Please note that this mount is NOT designed to tow the car. It should be used for license plate relocation only.
STI15-FMIC Key Features and Specifications:
- Bar and Plate Aluminum Intercooler Core Powder Coated Bengal Silver
- Intercooler Core Dimension: 28 x 8 x 3.75 inches
- Cast Aluminum End Tanks
- Aluminum Intercooler Pipes Available in Wrinkle Black and Red Powder Coat
- 100% Bolt-on with No Cutting of the Bumper
- Wrinkle Black Powder Coated Tubular Steel Fabricated Bumper Beam/Chassis Brace
- Leaves lots of room for your aftermarket horn installation
- Retains the Factory Tow Hook Mount for use with License Plate Relocation Kits (DO NOT USE THIS TO TOW THE CAR!)
- 2015 – 2020 STi
