Overview. Upgrade your fog lights with our SS3 Type A Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included round bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!
Plug and Play. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets – no additional wiring needed!
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
SAE Driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional “spot” pattern, the Stage Series Driving pattern shines in an 18×8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

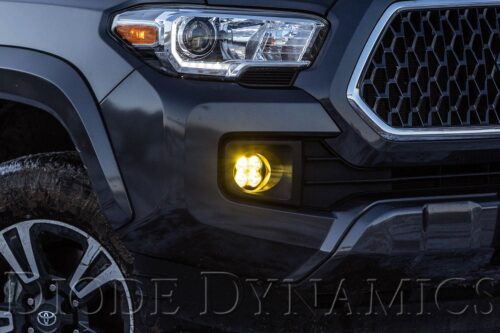

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.
When installed as a pair and aimed in accordance with your state’s regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.
White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true white output, without any blue, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.
Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They’ve also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you’re driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you’d like to discuss your lighting project!
- Advanced TIR optics provide high efficiency and focus
- SAE-compliant road-legal output

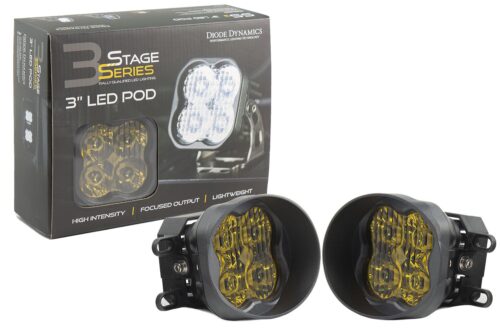

- Includes round bezel, for factory-style appearance
- Plug and play, no modification needed
- Durable powdercoated aluminum extrusion
- Engineered and Manufactured in USA
- Warranty: 8 year warranty
- Lexus CT200H 2011-2017
- Lexus ES350 2013-2015
- Lexus GS350 2013
- Lexus GS350 2014-2015
- Lexus GS450H 2013
- Lexus GS450H 2014-2015
- Lexus GX460 2010-2014
- Lexus HS250 2010-2012
- Lexus IS250 2011-2013
- Lexus IS350 2011-2013
- Lexus IS-F 2008-2013
- Lexus LX570 2008-2015
- Lexus RX350 2010-2015
- Lexus RX450H 2010-2015
- Subaru Legacy 2015-2019
- Toyota 4Runner 2010-2019
- Toyota Avalon 2007-2015
- Toyota Camry 2007-2014
- Toyota Corolla 2009-2016
- Toyota Highlander 2008-2010
- Toyota Matrix 2009-2013
- Toyota Prius 2010-2016
- Toyota Prius C 2012-2016
- Toyota Prius V 2012-2016
- Toyota RAV4 2006-2012
- Toyota Sienna 2010-2016
- Toyota Solara 2007-2008
- Toyota Tacoma 2012-2019
- Toyota Tundra 2007-2019
- Toyota Venza 2009-2014
- Toyota Yaris 2007-2016

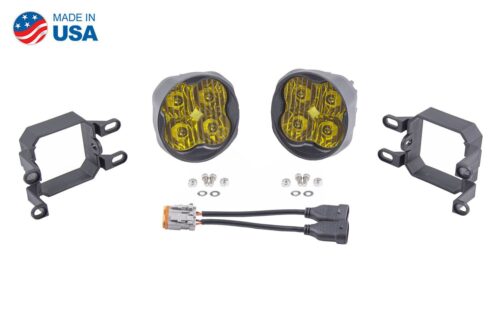

In the Box:
- Two (2) SS3 3” Round LED Pods
- Two (2) H11 DT Adapters
- Mounting brackets and hardware
|LENS COLOR/OPTICS||PEAK BEAM INTENSITY |
(LUX @ 10M)
|MEASURED OUTPUT |
|RAW OUTPUT |
|Driving White Sport||54,700 cd||547 lux||1,520 lm||2,262 lm||6000K White|
|Driving White Pro||66,500 cd||665 lux||3,000 lm||5,796 lm||6000K White|
|Fog White Sport||10,600 cd||106 lux||1,520 lm||2,262 lm||6000K White|
|Fog White Pro||11,900 cd||119 lux||3,000 lm||5,796 lm||6000K White|
|Fog Yellow Sport||9,050 cd||91 lux||1,300 lm||1,930 lm||3000K Yellow|
|Fog Yellow Pro||10,900 cd||109 lux||2,700 lm||5,220 lm||3000K Yellow|
